Surgical and Ophthalmic Microscope SO-5000SE

Overview SO-5000SE Ophthalmic Microscope

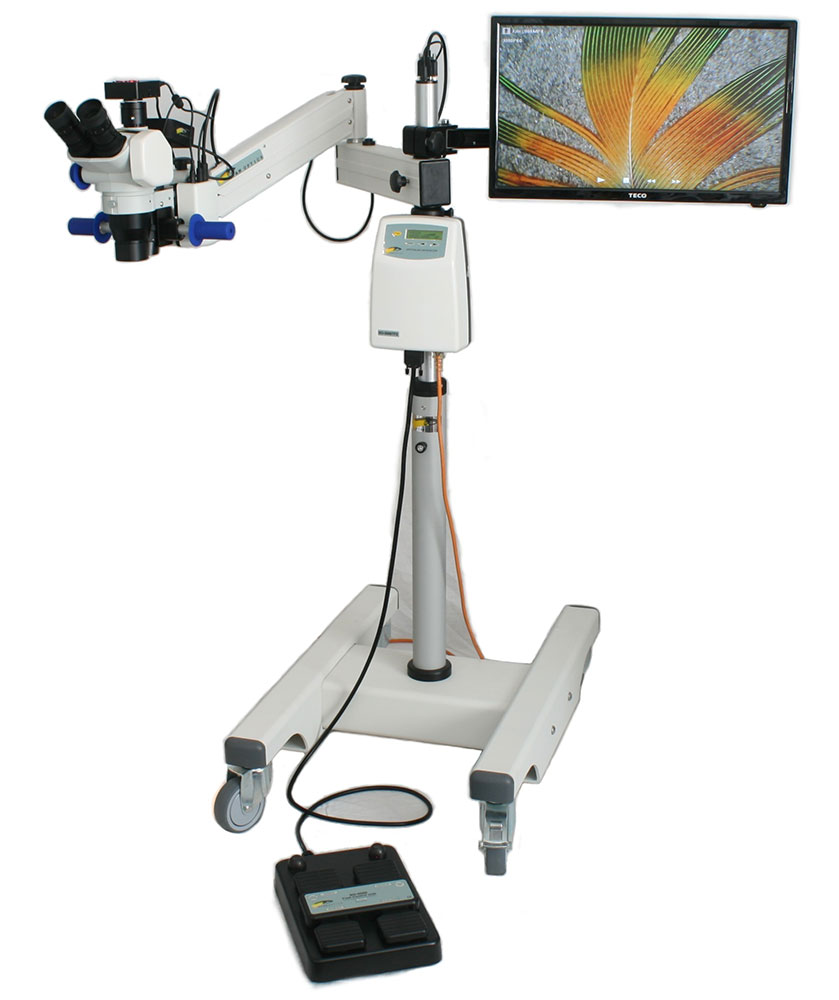

The SO-5000SE Ophthalmic Microscope is a high-performance, floor-stand-mounted microscope designed for precision in surgical environments. With foot-controlled focus, zoom, and light intensity, it offers seamless operation and superior optics. This microscope is equipped with high-resolution Olympus optics and a coaxial LED light system, ensuring clear and bright visualization throughout its lifetime.

SO-5000 SE – Brochure for more information

Why choose the SO-5000SE?

The SO-5000SE Ophthalmic Microscope offers unparalleled optical performance, convenience, and comfort. Its foot-controlled operation, high-resolution optics, and durable design make it the ideal choice for precision in ophthalmic surgeries, ensuring both safety and efficiency.

Key Features

• Floor-stand mounted design: Provides stability and ease of use in surgical settings.
• Foot-controlled operation: Allows for hands-free adjustment of focus, zoom, and light intensity.
• High-resolution optics: Equipped with Olympus optics for superior image clarity.
• Coaxial LED illumination: Provides bright, consistent light with no need for bulb replacements.
• Versatile power options: Operates on mains power with internal voltage regulation or a 12V battery.
• Coaxial video system: includes streaming video capability and an assistant microscope for enhanced visualisation.



Specifications

Optical head

• Viewing system: Tri-nocular stereoscopic, 10° convergent angle for viewing comfort, with high-resolution prism system.
• Eyepieces: Tube inclination of 45°, high field number 22 for wide field of view, with 24.6mm eye relief and reversible eye cups for spectacle wearers.
• Magnification: Continuous zoom from 4.2x to 25x.
• Field of view: Ranges from 53mm to 9mm depending on magnification.
• Refractive error correction: ±5D anisometropia.
• Pupillary distance: Adjustable from 50mm to 76mm, with locked eyepiece tubes.
• Focusing: Fine focus range of ±25mm.
• Mould protection: Anti-fungus pellets providing three years of protection.

Illumination

• Type: Coaxial, direct optical delivery system.
• Lamp: 20W LED with 75,000 lux intensity, designed to last the lifetime of the microscope.
• Hazard protection: UV and blue light filtered to 435nm.
• Color temperature: 3000°K.
• Intensity range: Adjustable across 10 levels.

Mounting system

• Arm: Elbow and angle-poise movement in horizontal and vertical directions, with variable friction locks.
• Head tilt: Adjustable from +5° to -45°.
• Vertical tension: Adjustable gas spring to set lifting force.
• Materials: Selected to resist rust and corrosion.

Foot control

• Functions: Controls focus, zoom, and light intensity.
• Dimensions: 310 x 210 x 70 mm.
• Weight: 5.1 kg.
• Cable length: 2.0 m.
• Mounting: Attach to the main pillar.

Power supply

• Mains input: 100-240VAC, 50-60Hz, with overvoltage, overcurrent, and short-circuit protection.
• Battery input: 12V DC, polarity, and current surge protected.
• Approvals: Medical grade certifications including CSA C22.2 No. 60601.1-M90, UL 60601-1, IEC 60601-1, and CE marked.

Packaging

• Microscope (excluding floor stand): 81 x 52 x 31 cm, 25 kg.
• Floor Stand: Two cartons, each 90 x 27 x 29 cm, 22 kg per carton.
• Monitor: 45 x 25 x 35 cm, 6 kg.

Performance

• High-quality optics: The SO-5000SE is equipped with high-resolution Olympus optics, providing clear and detailed images, essential for precision in ophthalmic surgeries.
• Versatile zoom: Continuous zoom from 4.2x to 25x ensures detailed examination and adaptability across various surgical needs.
• Bright and adjustable illumination: The coaxial LED light provides 75,000 lux brightness, with adjustable intensity across 10 levels for optimal visualisation.

Comfort

• Hands-free operation: The foot-controlled system allows surgeons to adjust focus, zoom, and light intensity without interrupting the procedure.
• Ergonomic design: The tri-nocular viewing system with adjustable pupillary distance and fine focus adjustments ensures comfort and precision during long procedures.
• Visual safety: The microscope is equipped with UV and blue light filters to protect both the patient and the operator during use.

Convenience

• Sturdy construction: Floor-stand mounting provides stability, while the adjustable arm and head tilt allow for flexible positioning.
• Flexible power supply: Operates on both mains power with internal regulation and a 12V battery, ensuring reliable performance in various settings.
• Maintenance-free: The LED lamp is designed to last the life of the microscope, reducing the need for maintenance and minimising downtime.

Accessories and options

• Aluminium transit case: SO-5000A for secure and convenient transportation.
• PD adjuster: SO-1510 Pupillary Distance Adjuster for customised user comfort.
• Battery: SO-251 12V Gel Cell Battery for portable operation
